新一代的军标测试设备,设计满足测试要求
MIL-461G CS115 / CS116
MIL-461F CS106,
MIL-461C CS 06
MIL 1275B
DO-160 section 17 / section19 。

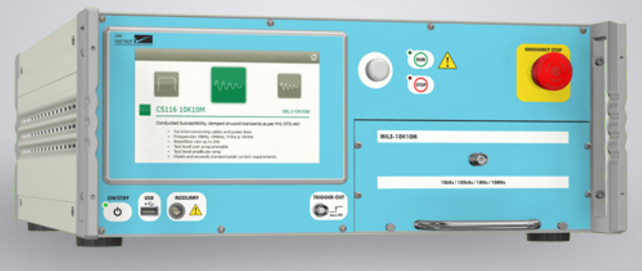

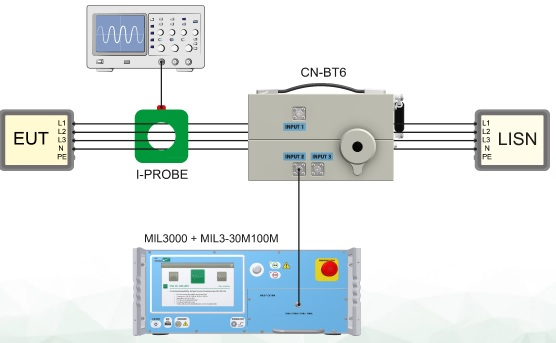

MIL-MG3系统的设计结构为插入式模块，自行选择功能模块, 也提供多种耦合及校正装置
内建自动化测试程序

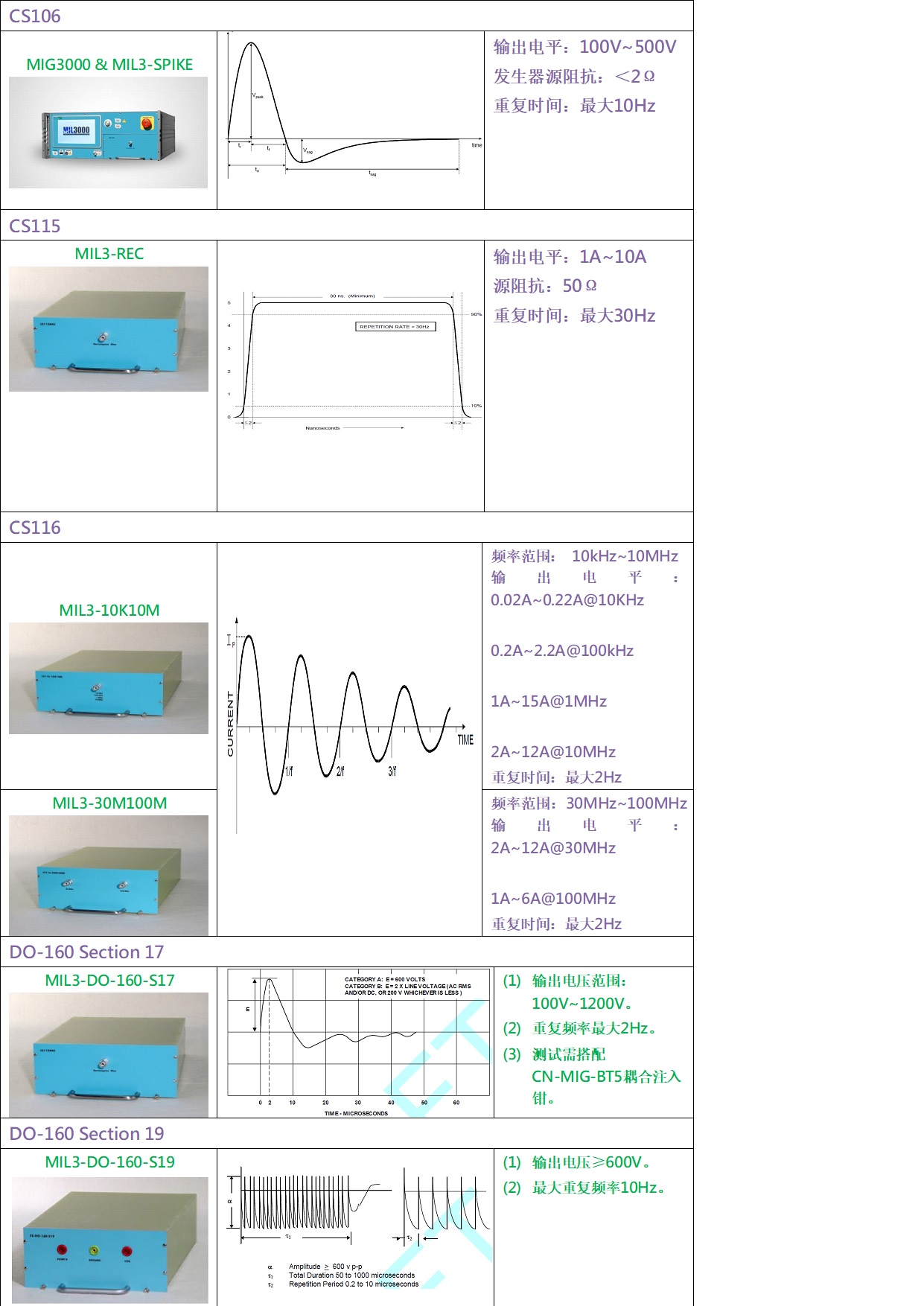

MIL-MG3 系统组成:
包含 : MIL-MG3主机 ,波形模块(功能模块选择表)及附件(校正治具,测量负载及附件选择表)
| 功能模块选择表 | ||||||||
| MIL-MG3 | 主机 | MIL3-REC | MIL3-10K10M | MIL3-SPIKE | MIL3-SPIK-SLOW | MIL3-DO-160-S17 | MIL3-DO-160-S19 | MIL3-1275B |
| MIL3-30M100M | MIL3-SPIKE-FAST | |||||||
| MIL461C CS06 | √ | |||||||
| MIL461F CS106 | √ | √ | ||||||
| MIL461G CS115 | √ | √ | ||||||
| MIL461G CS116 | √ | √ | ||||||
| MIL1275B | √ | √ | ||||||
| DO-160 S17 | √ | √ | ||||||
| DO-160 S19 | √ | √ | ||||||
| 校正治具,测量负载及附件选择表 | ||||||||
| MIL-MG3 | 主机 | MIL3-REC | MIL3-10K10M | MIL3-SPIKE | MIL3-SPIKESLOW | MIL3-DO-160-S17 | MIL3-DO-160-S19 | MIL3-1275B |
| MIL3-30M100M | MIL3-SPIKE-FAST | |||||||
| CN-BT6 | √ | √ | √ | |||||
| VERI-MIL3 | √ | √ | √ | |||||
| CN-MIG-BT5 | √ | √ | √ | √ | ||||
| DC-S17CL | √ | √ | √ | |||||
| VERI5 | √ | √ | √ | |||||
| VERI50 | √ | √ | ||||||
| 20dB ATTEN. | √ | 选购 | ||||||
| I-PROBE-CS | √ | √ | √ | |||||
| TEMA3000 | √ | 选购 | 选购 | 选购 | 选购 | 选购 | 选购 | |
基本设置:

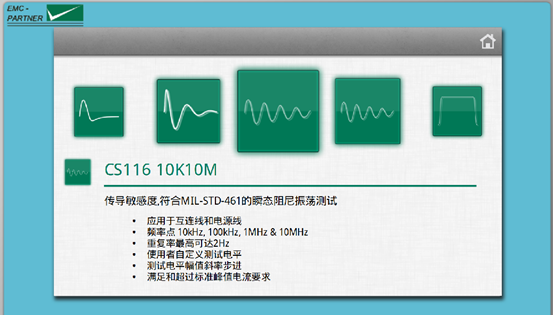

中文/英文操作接口/彩色触控屏幕

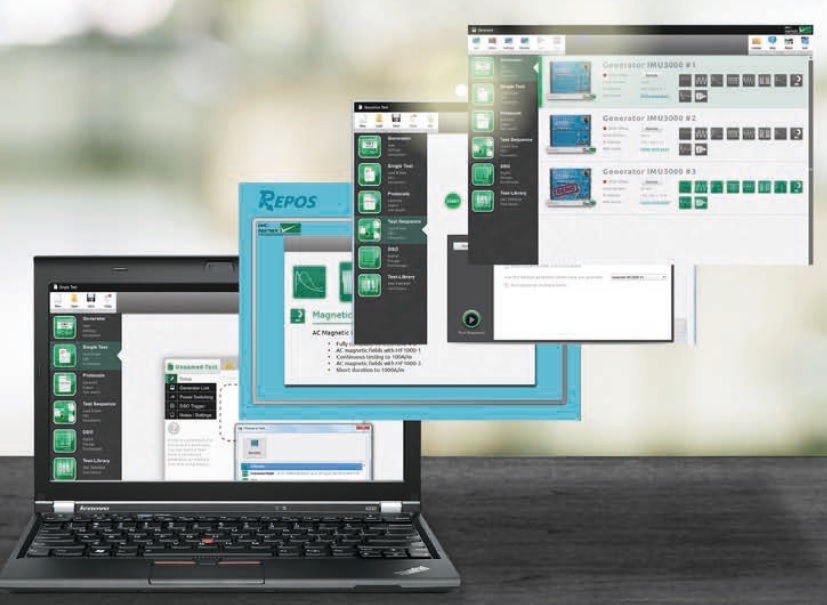

TEMA3000 软件
MIL-STD-461 C CS06 模块
| MIL461C CS06模块 | ts | tr | Z cal | 电压范围 |
| MIL3-SPIKE-SLOW | 10 µs ±20% | 1 to 2 µs | 5 Ohm | 20 to 500 V |
| MIL3-SPIKE-FAST | 150ns ±20% | 15 to 30 ns | 5 Ohm | 20 to 400 V |
